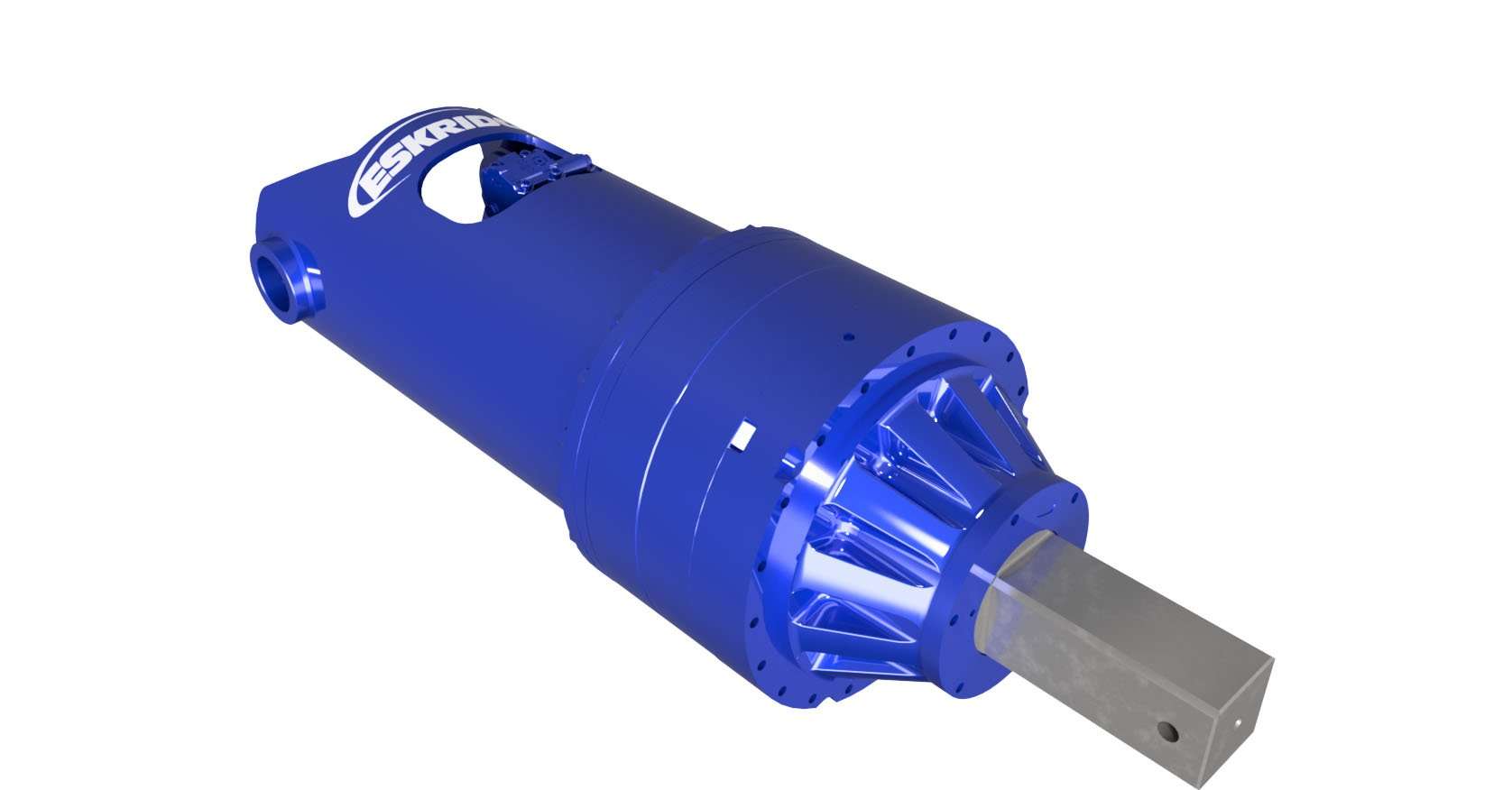

D1400 Anchor Drive
Output Torque
115,000 Ft. Lbs.
155,919 Nm
Features & Benefits
- Heavy Duty
- Double Planetary
- High Efficiency
| Rated Output Torque | 115,000 Ft. Lbs. |
| Maximum System Pressure | 5,000 PSI |
| Output Shaft | 5-1/4″ SQUARE HEX |
| Shaft Pullout Load | 50,000 Lbs. / 22,670 Kg. |
| Shaft Pressure Load | 95,000 Lbs. / 43,090 Kg. |
| Bail Boss Diameter | 4 In. / 100 mm |
| Approximate Weight | 2,100 Lbs. / 950 Kg. |
