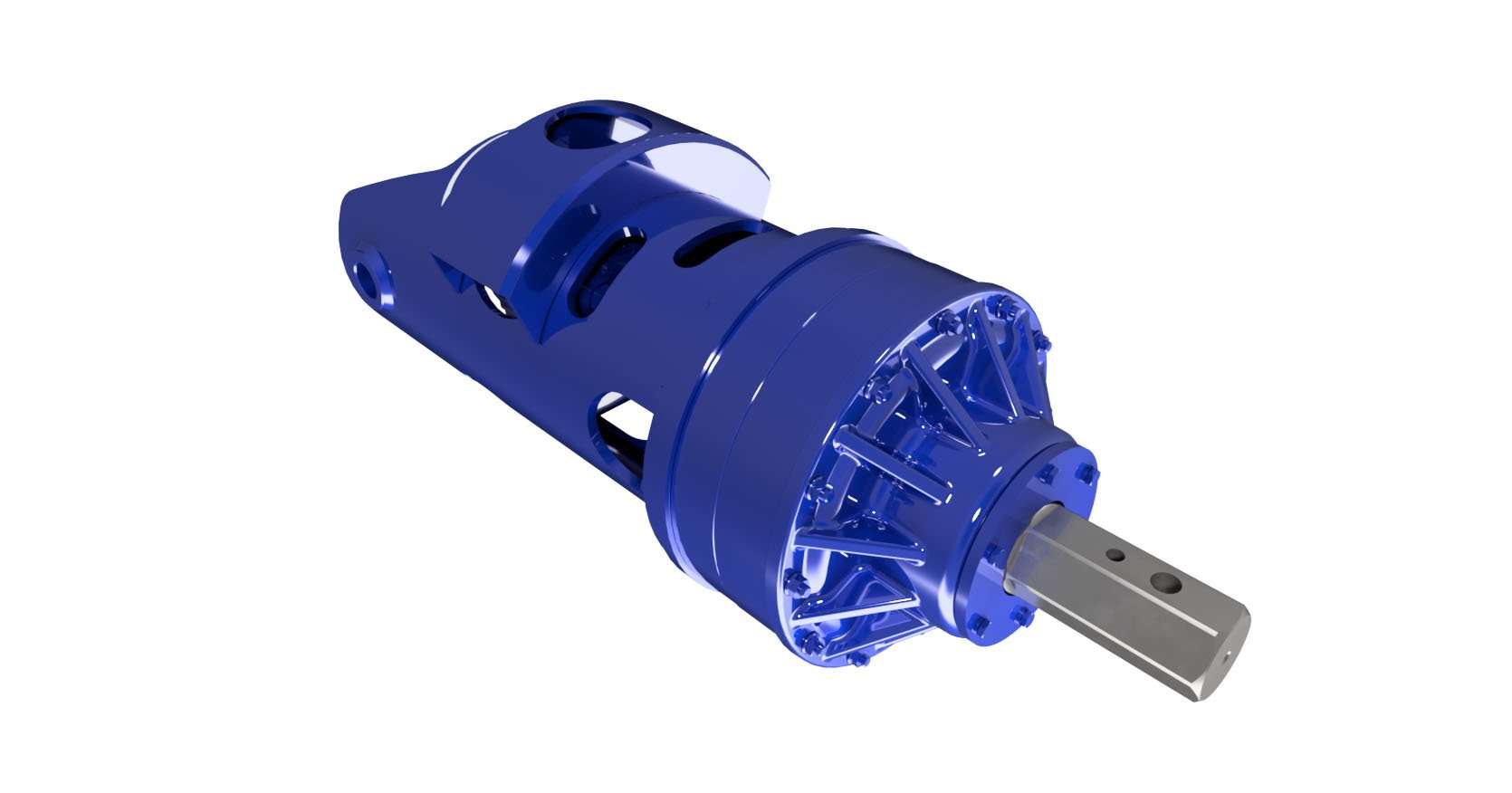

78 Anchor Drive
Output Torque
12,000 Ft. Lbs.
16,269 Nm
Features & Benefits
- 2-speed
- 2-Speed with Automatic, Integral Kickdown
- Heavy Duty
- Double Planetary
- High Efficiency
- S78 Drive Head Available With Ductile Iron Bearing Carrier and Heavy-Duty Plate-Retained Shaft
| Rated Output Torque | 12,000 Ft. Lbs. |
| Maximum System Pressure | 2,500 PSI |
| Output Shaft | 2 1/2″ or 2 5/8 HEX |
| Shaft Pullout Load | 15,000 Lbs. / 6,800 Kg. |
| Shaft Pressure Load | 15,000 Lbs. / 6,800 Kg. |
| Bail Boss Diameter | 1.25 or 1.5 In. / 32 or 38 mm |
| Approximate Weight | 370 Lbs. / 165 Kg. |
