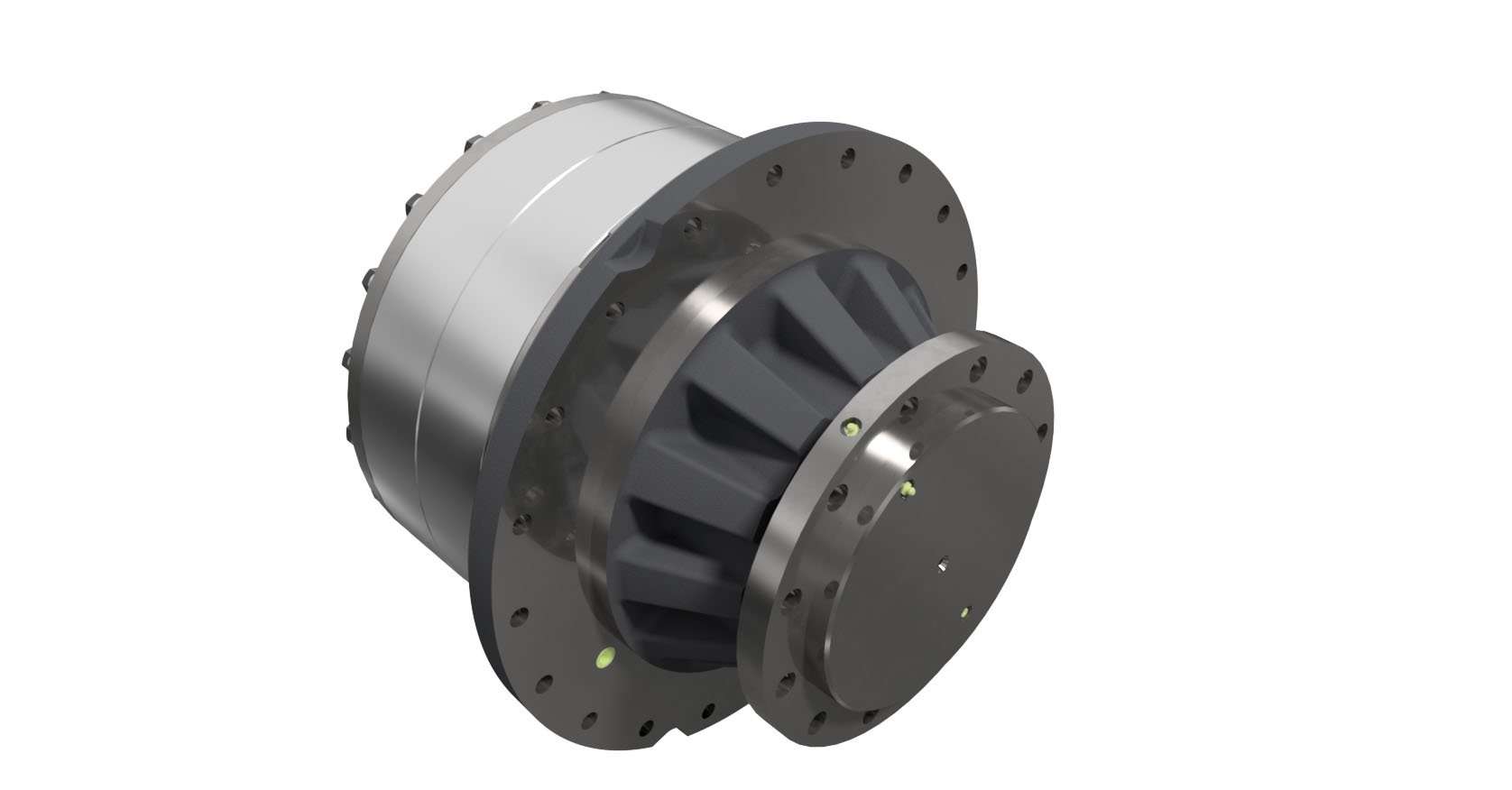

600 Spindle Drive
Output Torque
600,000 In. Lbs.
67,791 Nm
Features & Benefits
- Patented Load-N-Lock™ shaft retention
- Gearbox Mounting – Flanged, Flangeless, Eccentric Pilot or Custom
- Output Spindle 17″ dia., 12 X .125″ – 12 UNF on 15″ Dia Bolt circle 12.75″ Dia. Pilot
- Input Mount SAE “C” (2&4 Bolt), SAE “D” (4 Bolt) and SAE “E” (4 Bolt)
| Maximum Intermittent Output Torque | 600,000 In. Lbs. / 67,791 Nm. |
| Continuous Output Torque | 300,000 In. Lbs. / 33,895 Nm. |
| Maximum Input Speed | 4,000 RPM |
| Standard Ratios | 25, 39, 60, 70, 89, 97, 106, 110, 138, 145, 155, 166, 187, 211, 216, 226, 237, 242, 260, 277, 292, 303, 330, 338 |
