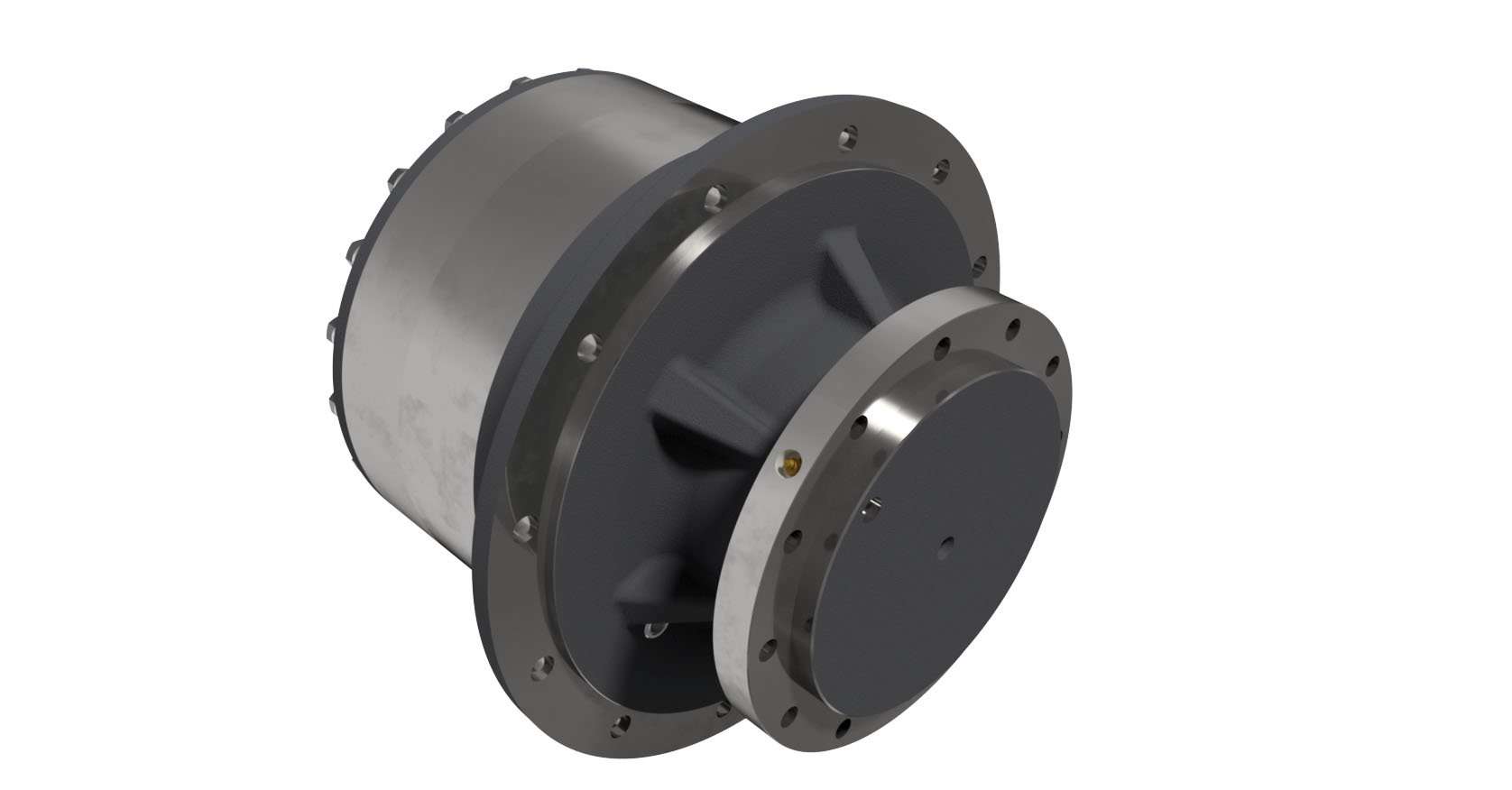

440 Spindle Drive
Output Torque
440,000 In. Lbs.
49,713 Nm
Features & Benefits
- Load-N-Lock™ Shaft Retention
- Gearbox Mounting – Flanged, Flangeless, Thru Bolt Flangless, Eccentric Pilot or Custom
- Output Spindle 11″ Dia. Pilot, 12 X 3/4″ – 16 UNF on 12.75″ Dia Bolt Circle , Custom Spindle Option
- Input mount SAE “C” (2&4 Bolt), SAE “D” (4 Bolt) and SAE “E” (4 Bolt)
| Maximum Intermittent Output Torque | 440,000 In. Lbs. / 49,713 Nm. |
| Continuous Output Torque | 220,000 In. Lbs. / 24,857 Nm. |
| Maximum Input Speed | 3,000 RPM |
| Standard Ratios | 19, 28, 36, 47, 71, 77, 81, 95, 105, 114, 119, 121, 136, 142, 148, 156, 157, 161, 176, 183, 192, 203, 228, 237, 240, 263, 296, 310, 402 |
