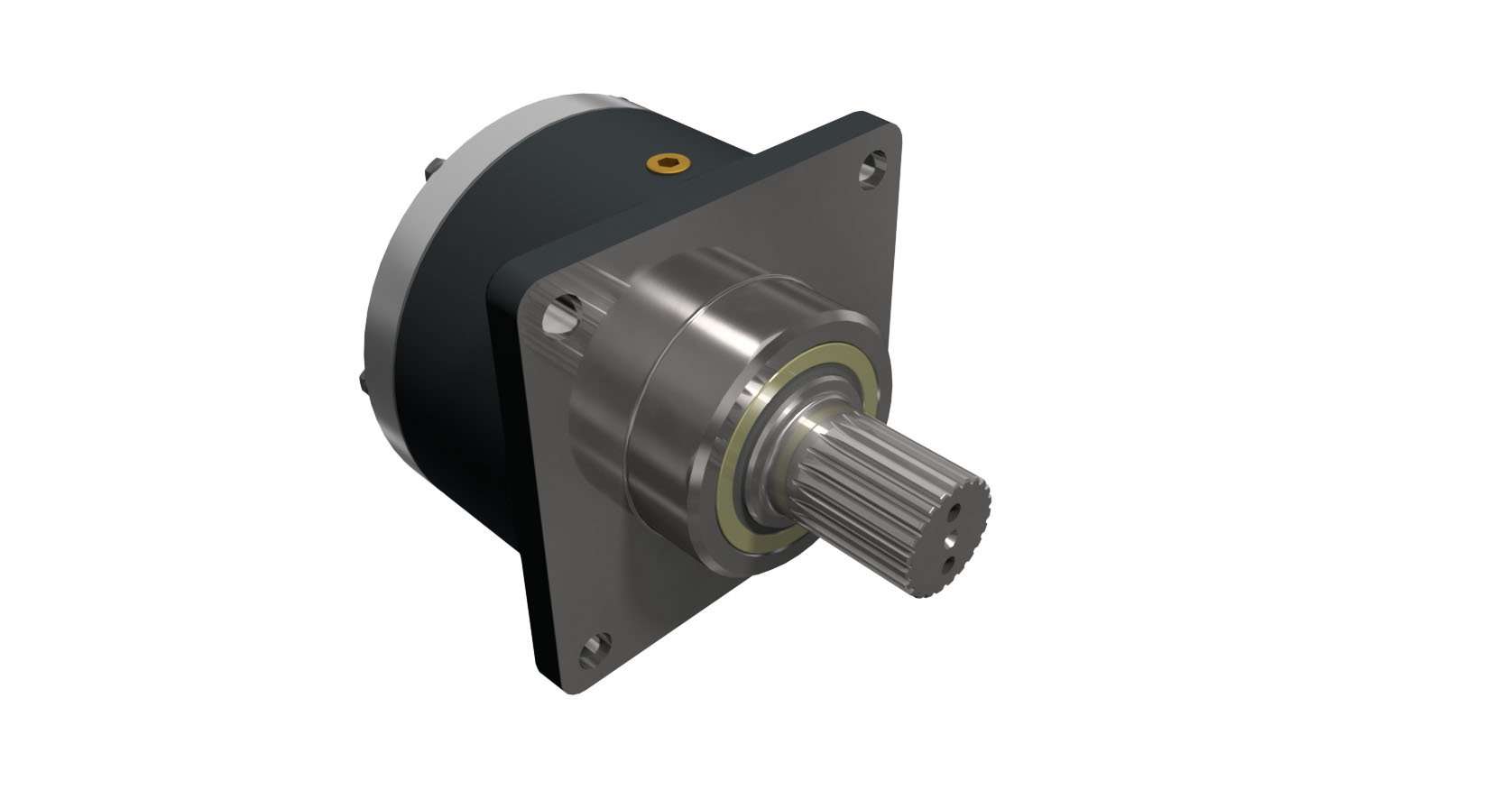

28 SHAFT DRIVE
Output Torque
50,000 In. Lbs.
5,649 Nm
Features & Benefits
- Patented Load-N-Lock™ Shaft Retention
- Gearbox Mounting – Square Flange or Custom
- Output Shaft – 2.00″ Dia x 3/8″ Key, 23T 12/24 DP Spline, 2.00″ Dia x 1/2″ Key, 2.25″ Dia. x 1/2″ Key, 1.50″ Dia x 3/8″ Key, 2.00″ Dia x 1/2″ Key (Internal) or Custom
- Input mount SAE “A” (2 & Modified 4 bolt), SAE “B” (2 Bolt, 4 Bolt), SAE “C” (2 Bolt) and SAE “C” (4 Bolt)
SPECIFICATIONS
| Maximum Intermittent Output Torque | 50,000 In. Lbs. / 5,649 Nm. |
| Continuous Output Torque | 25,000 In. Lbs. / 2,825 Nm. |
| Maximum Input Speed | 3,000 RPM |
| Standard Ratios | 4, 5, 16, 20, 25, 68, 84, 104, 129 |
