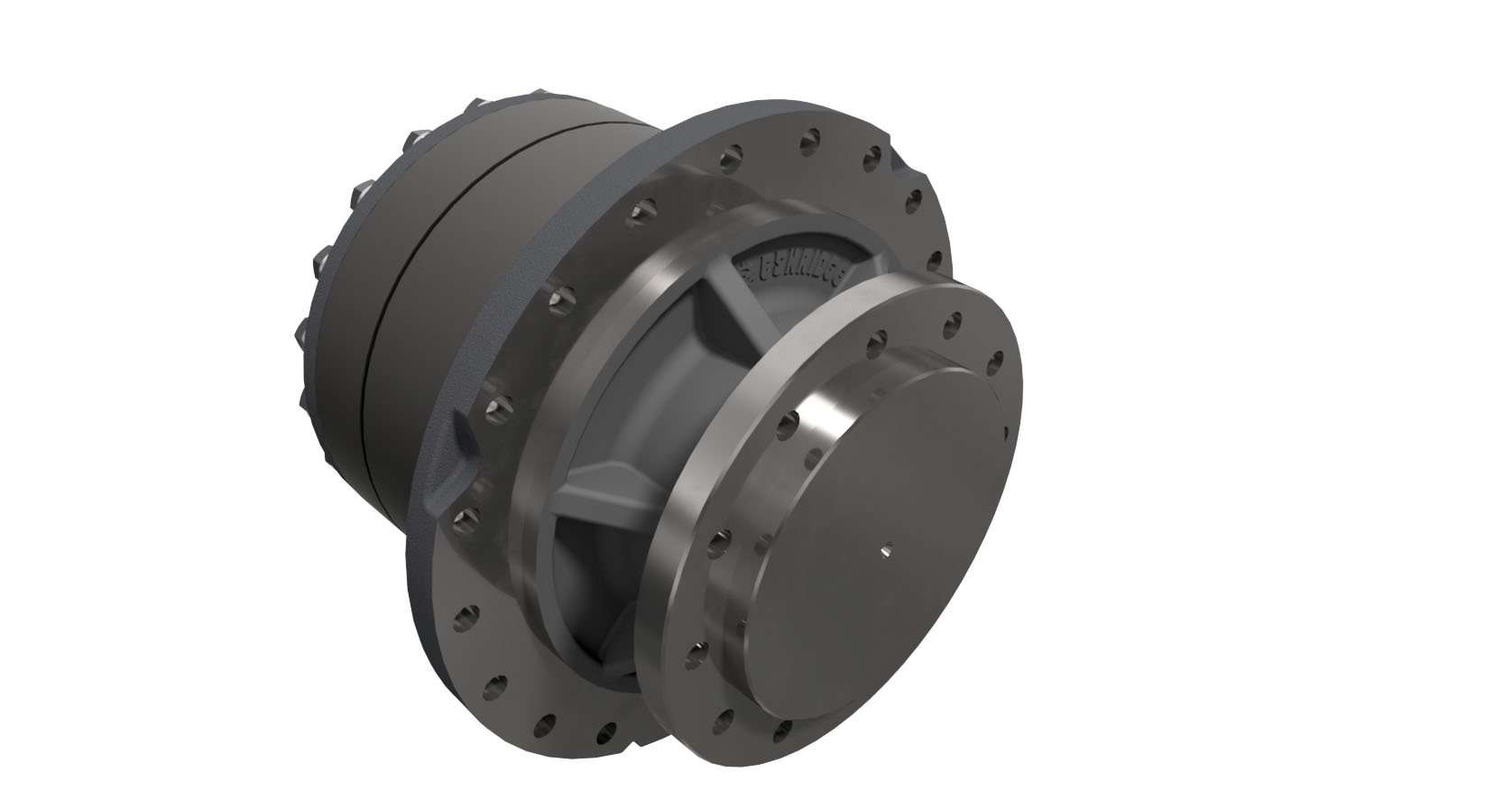

310 Spindle Drive
Output Torque
310,000 In. Lbs.
35,025 Nm
Features & Benefits
- Patented Load-N-Lock™ Shaft Retention
- Gearbox Mounting – Flanged, Flangeless or Custom
- Output Spindle 12.38″ Dia, 9.00″ Dia. Pilot, (12) 3/4″-16 UNF on 10.50″ B.C.
- Input Mount: SAE “A” (2 & 4 Bolt), SAE “B” (2 & 4 Bolt), SAE “C” (2 & 4 Bolt) and SAE “D” (4 Bolt)
| Maximum Intermittent Output Torque | 310,000 In. Lbs. / 35,025 Nm. |
| Continuous Output Torque | 160,000 In. Lbs. / 18,078 Nm. |
| Maximum Input Speed | 3,000 RPM |
| Standard Ratios | 20, 26, 30, 40 |
