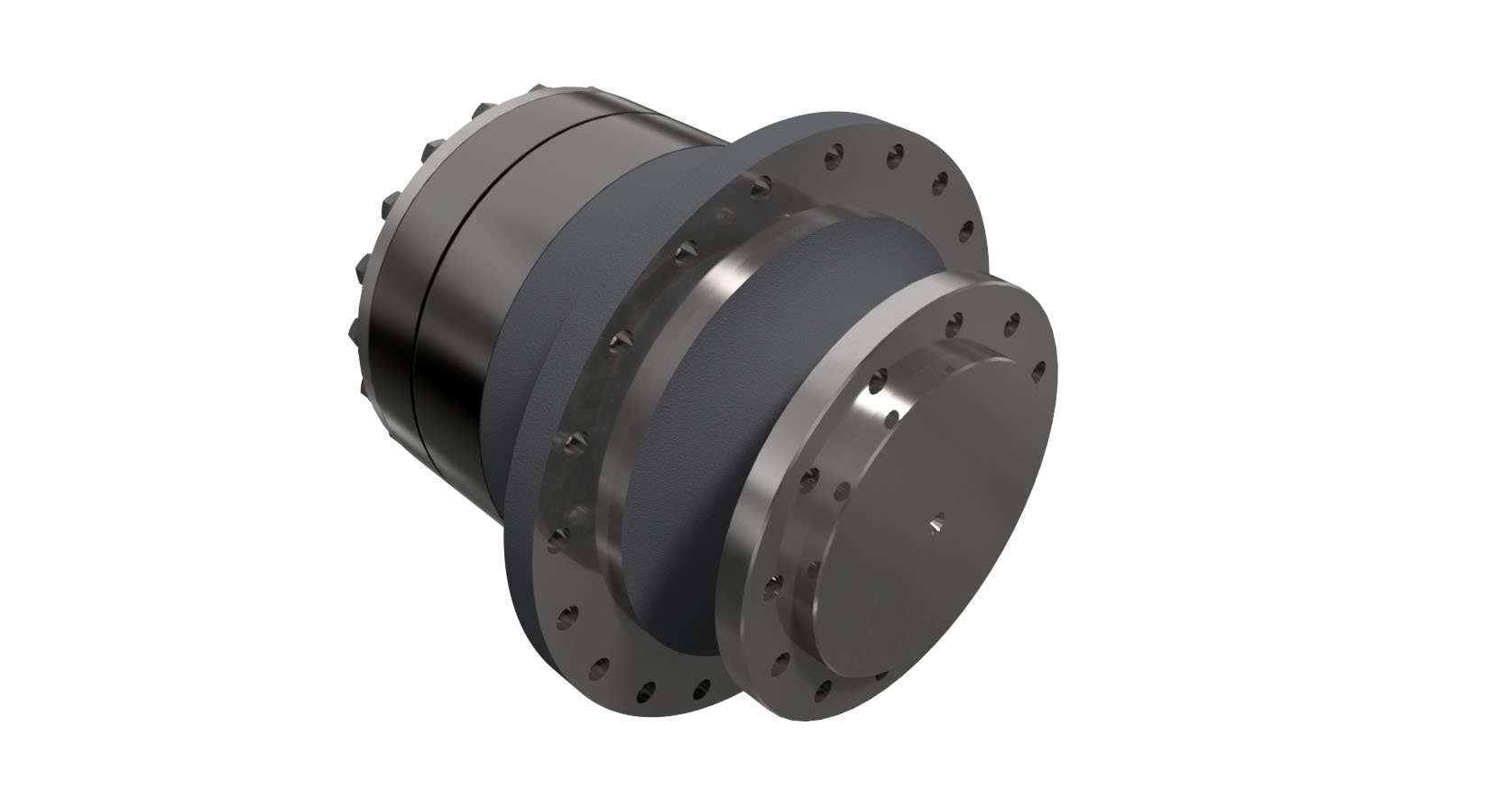

252 Spindle Drive
Output Torque
250,000 In. Lbs.
28,246 Nm
Features & Benefits
- Available With Load-N-Lock™ shaft retention
- Gearbox Mounting – Flanged, Flangeless, Eccentric Pilot or Custom
- Output Spindle 12.38″ Dia, 9.00″ Dia. Pilot, (12) 3/4″-16 UNF on 10.50″ B.C.
- Input Mount SAE “A” (2 & 4 Bolt), SAE “B” (2 & 4 Bolt), SAE “C” (2 & 4 Bolt) and SAE “D” (4 Bolt)
- Available With Metal Face Seal Option
| Maximum Intermittent Output Torque | 250,000 In. Lbs. / 28,246 Nm. |
| Continuous Output Torque | 125,000 In. Lbs. / 14,123 Nm. |
| Maximum Input Speed | 3,000 RPM |
| Standard Ratios | 20, 26, 30, 38, 40, 51 |
