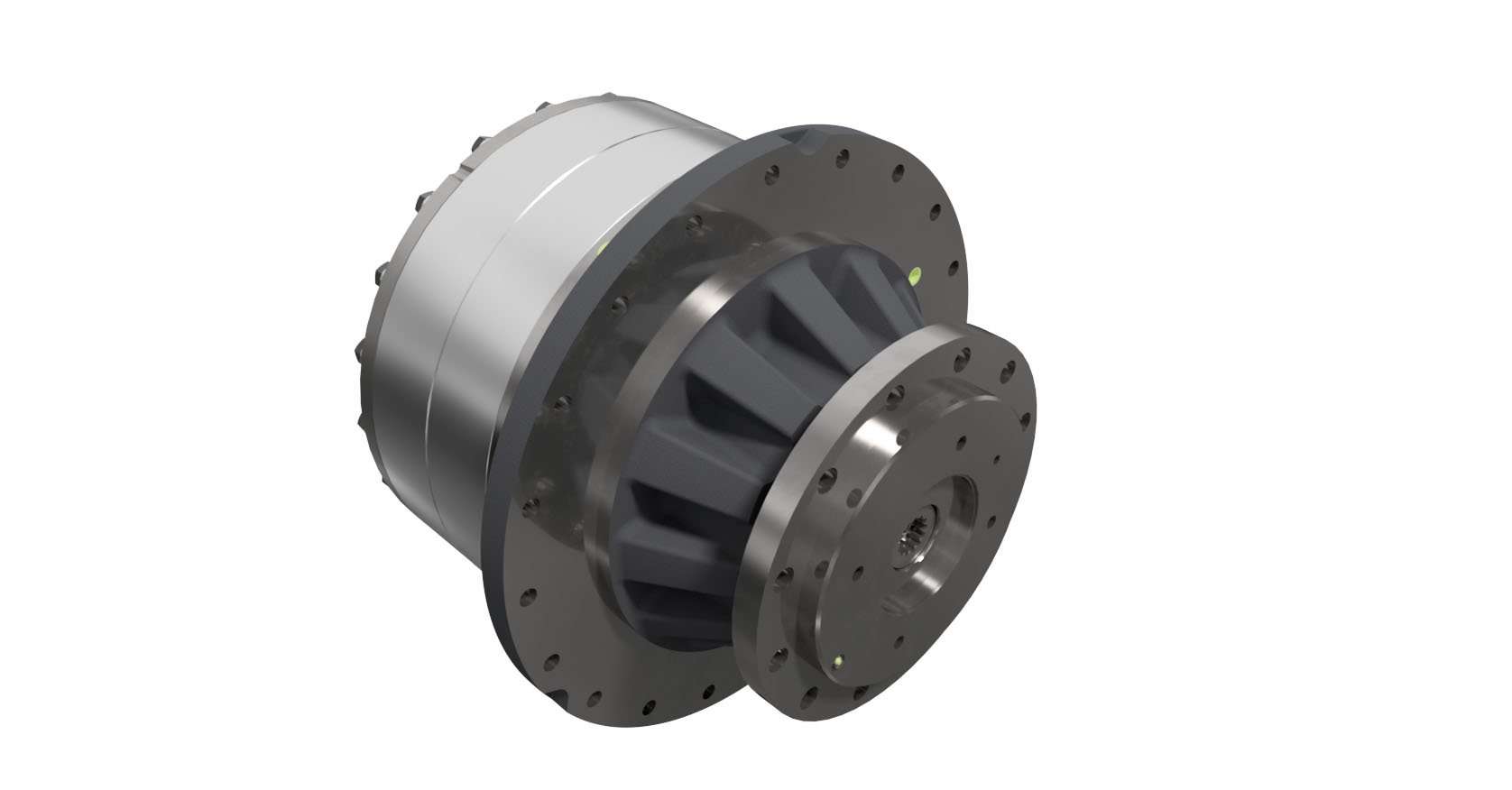

1000 Wheel Drive
Output Torque
1,000,000 In. Lbs.
112,984 Nm
Features & Benefits
- Patented Load-N-Lock™ Shaft Retention
- Wheel Flange – Flanged, Flangeless or Custom
- Frame (Spindle) Mount – 17″ Dia. Spindle SAE “C” (2 and 4 Bolt), 17″ Dia. Spindle SAE “D” (4 Bolt) or Custom
| Maximum Intermittent Output Torque | 1,000,000 In. Lbs. / 112,984 Nm. |
| Continuous Output Torque | 500,000 In. Lbs. / 56,492 Nm. |
| Maximum Input Speed | 4,000 RPM |
| Standard Ratios | 25, 40, 75, 109, 142, 160, 174, 218, 226, 254, 321 |
